Offshore Hot Water Jetting
Our HotJet pump units are ideal for high temperature washdown in hazardous areas on offshore drill rigs, platforms and other facilities where high pressure hot water is required. The offshore hot water jetting units are designed for use in hazardous areas including ATEX Zone I, NORSOK, and IECEx. In our standard units, all equipment is mounted into an enclosed offshore-certified crash frame with secure storage for the high pressure hose, lance, nozzles and power cable.
Standard Unit – Inline Heater
The Inline Heater unit provides rapid water heat-up times and is suitable for all areas where there is a reliable and constant =>1 bar water supply.
Performance: 15 lpm (4 gpm) at 210 bar (3000 psi)
Operating temperature up to 70°C available
Standard Unit – Immersion Heater
The Immersion Heater unit is designed for use where the site water supply is less than 1 bar, or where the supply is intermittent.
Performance: 15 lpm (4 gpm) at 210 bar (3000 psi)
Operating temperature up to 70°C available

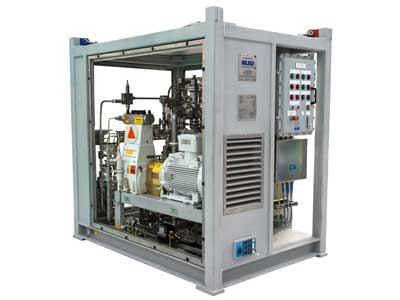

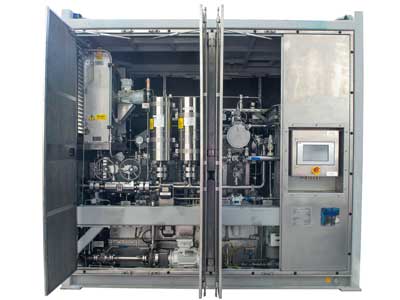

Bespoke HotJet Design
In addition to our standard Hotjet units, we design and manufacture bespoke hot water jetting packages to suit our customers’ specific requirements. Bespoke packages have included multi-location washdown on three decks of a platform from a single unit, a two-storey unit to meet platform space constraints, and the inclusion of large, insulated tanks.
Offshore Hot Water Jetting Case Study
This bespoke hot wash case study details the design of a small-footprint, multi-deck, multi-user hot wash system.
Call one of our sales engineers to discuss your application on +44 1905 751790 or email sales@calder.co.uk
Waterjetting Safety Awareness Training
We are members of the Water Jetting Association (WJA). The WJA is a trade association representing contractors, manufacturers, hirers and other organisations in all aspects of high-pressure water jetting and has developed waterjetting codes of practice. Our Life Cycle Services team provide Water Jetting Association-approved safety awareness training.
- Internal storage.
- Lockable stainless steel doors.
- Clear external view of the control panel.
- Fork truck slots for manoeuvrability.
- Wire sling set for overhead lifting.
- Easy access to hose connections.
- Rugged crash frame.
- Clear external view of the pressure gauges.
- Easy connection to standard 63 amp socket.
- Easy maintenance access.
- Clear markings for unit identification.
- Customer’s colour choice.
- Exd enclosure
Buttons/switches
- Pump start.
- Pump stop.
- Heater start.
- Heater stop.
- Emergency stop.
Indicator lamps
- Power on.
- Pump on.
- Heater on.
- Water over temperature Pump on.
- Motor overload.
- Pump bearing temperature high.
- Offshore-certified crash frame. This is the most common choice of our customers. Lighter than a container, but still providing very good protection during transportation and from the elements. Lockable stainless steel doors, and internal storage for the hose, lance, nozzles, and power cable. Supplied with fork-lift slots and lifting set.
- Container. The ultimate protection with sound attenuation options.
- DNV 2.7-2 standard. The DNV 2.7-2 standard includes lockable doors when closed with fire resistant seals; integral gas detector; IP56 rated within 1m of doors and louvers; portable fire extinguisher system; power safe in the event of a failure, and externally accessible fuel shut-off valve.
- Skid. The lightweight option.
- Skid with environmental enclosure. A combination of lightweight unit with a stainless steel environmental enclosure which also has sound attenuation options.
